Base Pickable

Pickables are special Actors which can be grabbed, held and used by Characters.

👪Base Class

This is a Base Class. Base Classes are abstract definitions used to share common methods and events between related child classes, thus you cannot spawn it directly.

Classes that share methods and events from this Base Class: Grenade, Melee, Weapon.

🧑‍💻API Source

This page is auto-generated! The Functions, Properties and Events described here are defined in our GitHub's API Repository! Feel free to commit suggestions and changes to the source .json API files!

They have special methods and events and are highlighted when looked at by a Character.

🦠 Functions

Returns	Name	Description
	`AddSkeletalMeshAttached`	Attaches a Skeletal Mesh as master pose to this entity
	`AddStaticMeshAttached`	Attaches a Static Mesh to this entity
table of string	`GetAllSkeletalMeshAttached`	Gets all Skeletal Meshes attached to this entity
table of string	`GetAllStaticMeshAttached`	Gets all Static Meshes attached to this entity
Character or nil	`GetHandler`	Gets the Character, if it exists, that's holding this Pickable
HandlingMode	`GetHandlingMode`	Gets the Handling Mode of this Pickable
SkeletalMesh Reference	`GetMesh`	Gets the name of the asset this Pickable uses
	`PullUse`	Pulls the usage of this Pickable (will start firing if this is a weapon)
	`ReleaseUse`	Releases the usage of this Pickable (will stop firing if this is a weapon)
	`RemoveAllSkeletalMeshesAttached`	Removes all SkeletalMeshes attached
	`RemoveAllStaticMeshesAttached`	Removes all StaticMeshes attached
	`RemoveSkeletalMeshAttached`	Removes, if it exists, a SkeletalMesh from this Pickable given its custom ID
	`RemoveStaticMeshAttached`	Removes, if it exists, a StaticMesh from this Pickable given its custom ID
	`SetAttachmentSettings`	Sets the Attachment Settings for this Pickable (how it attaches to the Character when Picking up)
	`SetCanUse`	Sets if this Pickable can be used by the player when held
	`SetCrosshairMaterial`	Sets the crosshair material for this Pickable
	`SetPickable`	Sets if this Pickable can be picked up from ground by the player
	`SetStaticMeshAttachedTransform`	Sets a Static Mesh Attached location and rotation

`AddSkeletalMeshAttached`

Spawns and attaches a SkeletalMesh to this entity, the SkeletalMesh must have the same skeleton used by this Actor's mesh, and will follow all animations from it. Uses a custom ID to be used for removing/customizing it afterwards

my_pickable:AddSkeletalMeshAttached(id, skeletal_mesh_path, use_parent_bounds?, use_base_leader_pose_component?, attachable_id?)

Parameters

Type	Parameter	Default	Description
string	`id`	Required parameter	Used further for removing or applying material settings on it
SkeletalMesh Reference	`skeletal_mesh_path`	Required parameter	Path to SkeletalMesh asset to attach
boolean	`use_parent_bounds?`	`true`	If true, this component uses its parents bounds when attached. This can be a significant optimization with many components attached together
boolean	`use_base_leader_pose_component?`	`true`	If true, this component will use the base leader pose component for copying it's animation
string	`attachable_id?`		Optionally attaches this to another attached skeletal mesh (instead of attaching to the root component)

`AddStaticMeshAttached`

Spawns and attaches a StaticMesh to this Pickable in a Socket with a relative location and rotation. Uses a custom ID to be used for removing/customizing it afterwards

my_pickable:AddStaticMeshAttached(id, static_mesh_path, socket?, relative_location?, relative_rotation?, use_parent_bounds?, attachable_id?)

Parameters

Type	Parameter	Default	Description
string	`id`	Required parameter	Unique ID to assign to the StaticMesh
StaticMesh Reference	`static_mesh_path`	Required parameter	Path to StaticMesh asset to attach
string	`socket?`		Bone socket to attach to
Vector	`relative_location?`	`Vector(0, 0, 0)`	Relative location
Rotator	`relative_rotation?`	`Rotator(0, 0, 0)`	Relative rotation
boolean	`use_parent_bounds?`	`true`	If true, this component uses its parents bounds when attached. This can be a significant optimization with many components attached together
string	`attachable_id?`		Optionally attaches this to another attached static mesh (instead of attaching to the root component)

`GetAllSkeletalMeshAttached`

Gets all Skeletal Meshes attached to this entity

local ret = my_pickable:GetAllSkeletalMeshAttached()

Returns

Type	Description
table of string	the key as the Attached ID, and the value as the Asset Path

`GetAllStaticMeshAttached`

Gets all Static Meshes attached to this entity

local ret = my_pickable:GetAllStaticMeshAttached()

Returns

Type	Description
table of string	the key as the Attached ID, and the value as the Asset Path

`GetHandler`

Gets the Character, if it exists, that's holding this Pickable

local ret = my_pickable:GetHandler()

Returns

Type	Description
Character or nil	No description provided

`GetHandlingMode`

Gets the Handling Mode of this Pickable

local ret = my_pickable:GetHandlingMode()

Returns

Type	Description
HandlingMode	No description provided

`GetMesh`

Gets the name of the asset this Pickable uses

local asset = my_pickable:GetMesh()

Returns

Type	Description
SkeletalMesh Reference	asset

`PullUse`

Pulls the usage of this Pickable (will start firing if this is a weapon)

my_pickable:PullUse(release_use_after?)

Parameters

Type	Parameter	Default	Description
float	`release_use_after?`	`-1`	Time in seconds to automatically release the usage (-1 will not release, 0 will release one tick after)

`ReleaseUse`

Releases the usage of this Pickable (will stop firing if this is a weapon)

my_pickable:ReleaseUse()

`RemoveAllSkeletalMeshesAttached`

Removes all SkeletalMeshes attached

my_pickable:RemoveAllSkeletalMeshesAttached()

`RemoveAllStaticMeshesAttached`

Removes all StaticMeshes attached

my_pickable:RemoveAllStaticMeshesAttached()

`RemoveSkeletalMeshAttached`

Removes, if it exists, a SkeletalMesh from this Pickable given its custom ID

my_pickable:RemoveSkeletalMeshAttached(id)

Parameters

Type	Parameter	Default	Description
string	`id`	Required parameter	Unique ID of the SkeletalMesh to remove

`RemoveStaticMeshAttached`

Removes, if it exists, a StaticMesh from this Pickable given its custom ID

my_pickable:RemoveStaticMeshAttached(id)

Parameters

Type	Parameter	Default	Description
string	`id`	Required parameter	Unique ID of the StaticMesh to remove

`SetAttachmentSettings`

Sets the Attachment Settings for this Pickable (how it attaches to the Character when Picking up)

my_pickable:SetAttachmentSettings(relative_location, relative_rotation?, socket?)

Parameters

Type	Parameter	Default	Description
Vector	`relative_location`	Required parameter	Location relative to the Socket
Rotator	`relative_rotation?`	`Rotator(0, 0, 0)`	Rotation relative to the Socket
string	`socket?`	`hand_r_socket`	Character Socket to attach to when picked up

`SetCanUse`

Sets if this Pickable can be used by the player when held

my_pickable:SetCanUse(can_use)

Parameters

Type	Parameter	Default	Description
boolean	`can_use`	Required parameter	No description provided

`SetCrosshairMaterial`

Sets the crosshair material for this Pickable

my_pickable:SetCrosshairMaterial(material_asset)

Parameters

Type	Parameter	Default	Description
Material Reference	`material_asset`	Required parameter	Asset path to the crosshair material

`SetPickable`

Sets if this Pickable can be picked up from ground by the player

my_pickable:SetPickable(is_pickable)

Parameters

Type	Parameter	Default	Description
boolean	`is_pickable`	Required parameter	No description provided

`SetStaticMeshAttachedTransform`

Sets a Static Mesh Attached location and rotation

my_pickable:SetStaticMeshAttachedTransform(id, relative_location, relative_rotation)

Parameters

Type	Parameter	Default	Description
string	`id`	Required parameter	Unique ID of the StaticMesh set with AddStaticMeshAttached
Vector	`relative_location`	Required parameter	New relative location
Rotator	`relative_rotation`	Required parameter	New relative rotation

🚀 Events

	Name	Description
	`Drop`	When a Character drops this Pickable
	`Hit`	When this Pickable hits something
	`Interact`	Triggered when a Character interacts with this Pickable (i.e. tries to pick it up)
	`PickUp`	Triggered When a Character picks this up
	`PullUse`	Triggered when a Character presses the use button for this Pickable (i.e. clicks left mouse button with this equipped)
	`ReleaseUse`	Triggered when a Character releases the use button for this Pickable (i.e. releases left mouse button with this equipped)

`Drop`

When a Character drops this Pickable

Pickable.Subscribe("Drop", function(self, character, was_triggered_by_player)
	-- Drop was called
end)

Arguments

Type	Argument	Description
Base Pickable	`self`	The Pickable which has been dropped
Character	`character`	The Character that dropped it
boolean	`was_triggered_by_player`	If the Player actively pressed the Drop binding to drop

`Hit`

When this Pickable hits something

Pickable.Subscribe("Hit", function(self, impact_force, normal_impulse, impact_location, velocity, other_actor)
	-- Hit was called
end)

Arguments

Type	Argument	Description
Base Pickable	`self`	The Actor that was hit
float	`impact_force`	The intensity of the hit normalized by the Pickable's weight
Vector	`normal_impulse`	The impulse direction of the hit
Vector	`impact_location`	The world space location of the impact
Vector	`velocity`	The Pickable's velocity at the moment it hit
Base Actor or nil	`other_actor`	The other actor that hit this Pickable

`Interact`

Triggered when a Character interacts with this Pickable (i.e. tries to pick it up)

Return false to prevent the interaction

Pickable.Subscribe("Interact", function(self, character)
	-- Interact was called
	return true
end)

Arguments

Type	Argument	Description
Base Pickable	`self`	The Pickable that just got interacted with
Character	`character`	The Character that interacted with it

`PickUp`

Triggered When a Character picks this up

Pickable.Subscribe("PickUp", function(self, character)
	-- PickUp was called
end)

Arguments

Type	Argument	Description
Base Pickable	`self`	The Pickable that just got picked up
Character	`character`	The Character that picked it up

`PullUse`

Triggered when a Character presses the use button for this Pickable (i.e. clicks left mouse button with this equipped)

Pickable.Subscribe("PullUse", function(self, character)
	-- PullUse was called
end)

Arguments

Type	Argument	Description
Base Pickable	`self`	The Pickable which has just been used
Character	`character`	The Character that used it

`ReleaseUse`

Triggered when a Character releases the use button for this Pickable (i.e. releases left mouse button with this equipped)

Pickable.Subscribe("ReleaseUse", function(self, character)
	-- ReleaseUse was called
end)

Arguments

Type	Argument	Description
Base Pickable	`self`	The Pickable which has just stopped being used
Character	`character`	The Character that stopped using it

➕ Available Crosshairs

nanos world provides a bunch of crosshair materials which can be used in Weapons/Pickables. You can of course create your own crosshair material and use those instead!

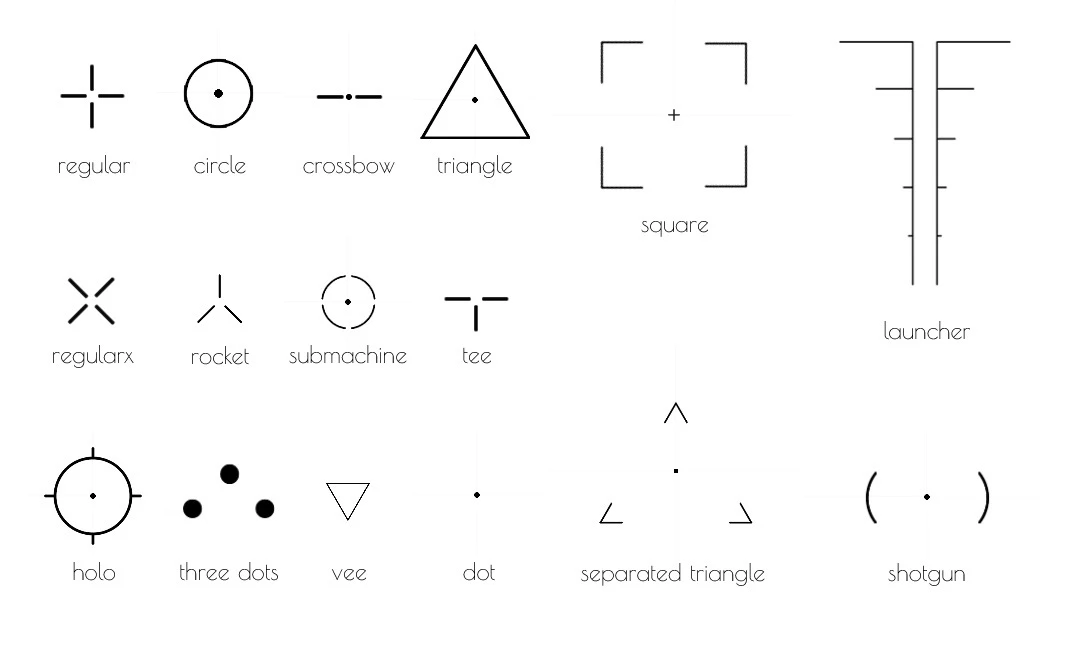

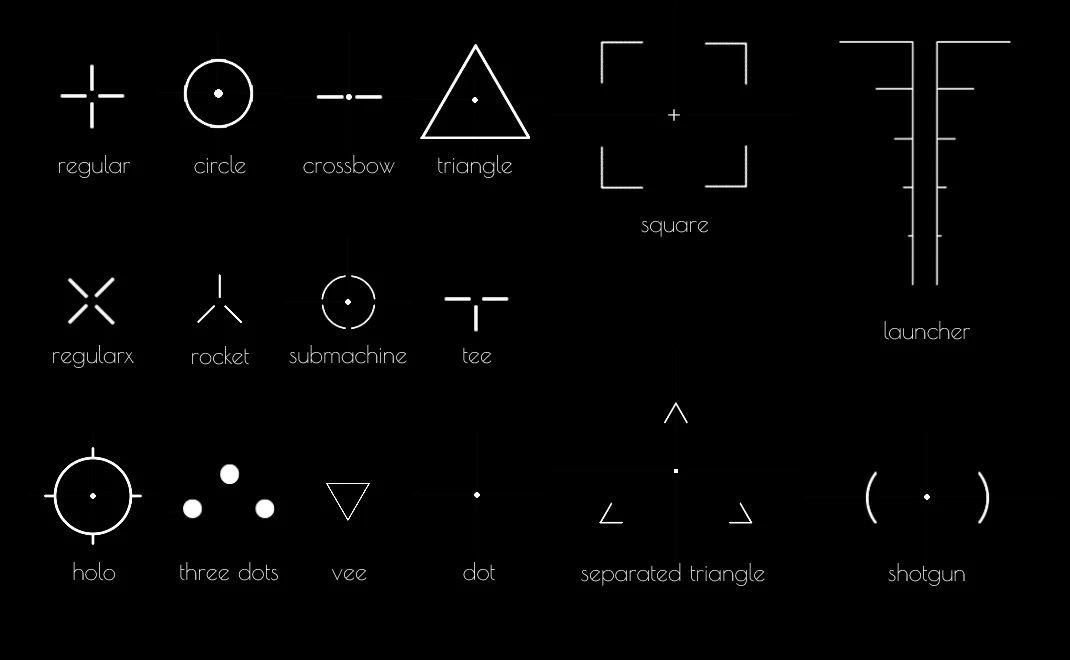

All available Crosshairs

List of crosshair materials included in the default asset pack

nanos-world::MI_Crosshair_Circle
nanos-world::MI_Crosshair_Crossbow
nanos-world::MI_Crosshair_Dot
nanos-world::MI_Crosshair_Holo
nanos-world::MI_Crosshair_Launcher
nanos-world::MI_Crosshair_Regular
nanos-world::MI_Crosshair_Regular_X
nanos-world::MI_Crosshair_Rocket
nanos-world::MI_Crosshair_Separated_Triangle
nanos-world::MI_Crosshair_Shotgun
nanos-world::MI_Crosshair_Square
nanos-world::MI_Crosshair_Submachine
nanos-world::MI_Crosshair_Tee
nanos-world::MI_Crosshair_ThreeDots
nanos-world::MI_Crosshair_Triangle
nanos-world::MI_Crosshair_Vee
