Default Materials

Default Materials and it's Parameters.

Template Materials

nanos world provides several built-in template materials which can be easily used and customized with Base Paintable methods.

info

You can create and access your own Materials Parameters if you have a Mesh which uses a Custom Material!

tip

For more information regarding Material Types and Blend Modes, please refer to Unreal Docs.

Parameters Supported by Default Materials

Type	Parameter	Default Value	Description
Color	`Tint`	`Color.WHITE`	Affects `Base Color` input
Texture	`Texture`	White Texture	Image which multiplies with Tint to generate the final color
Texture	`Normal`	UP Normal Map `Vector(0.5, 0.5, 1)`	Image which affects how Light reflects on the object
Color	`Emissive`	`Color.BLACK`	Affects `Emissive` input, high values will cause bloom effect
Scalar	`Metallic`	`0`	Affects `Metallic` input - goes from 0 to 1
Scalar	`Specular`	`0.5`	Affects `Specular` input - goes from 0 to 1
Scalar	`Roughness`	`0.65`	Affects `Roughness` input - goes from 0 to 1
Scalar	`Opacity`	`0`	Affects `Opacity` and `Opacity Mask` inputs - goes from 0 to 1 Opacity multiplies with Texture Alpha Channel to generate the final opacity

tip

For more information regarding how each Parameter affects the final visual, please take a look at Unreal Physically Based Materials and Material Inputs docs page.

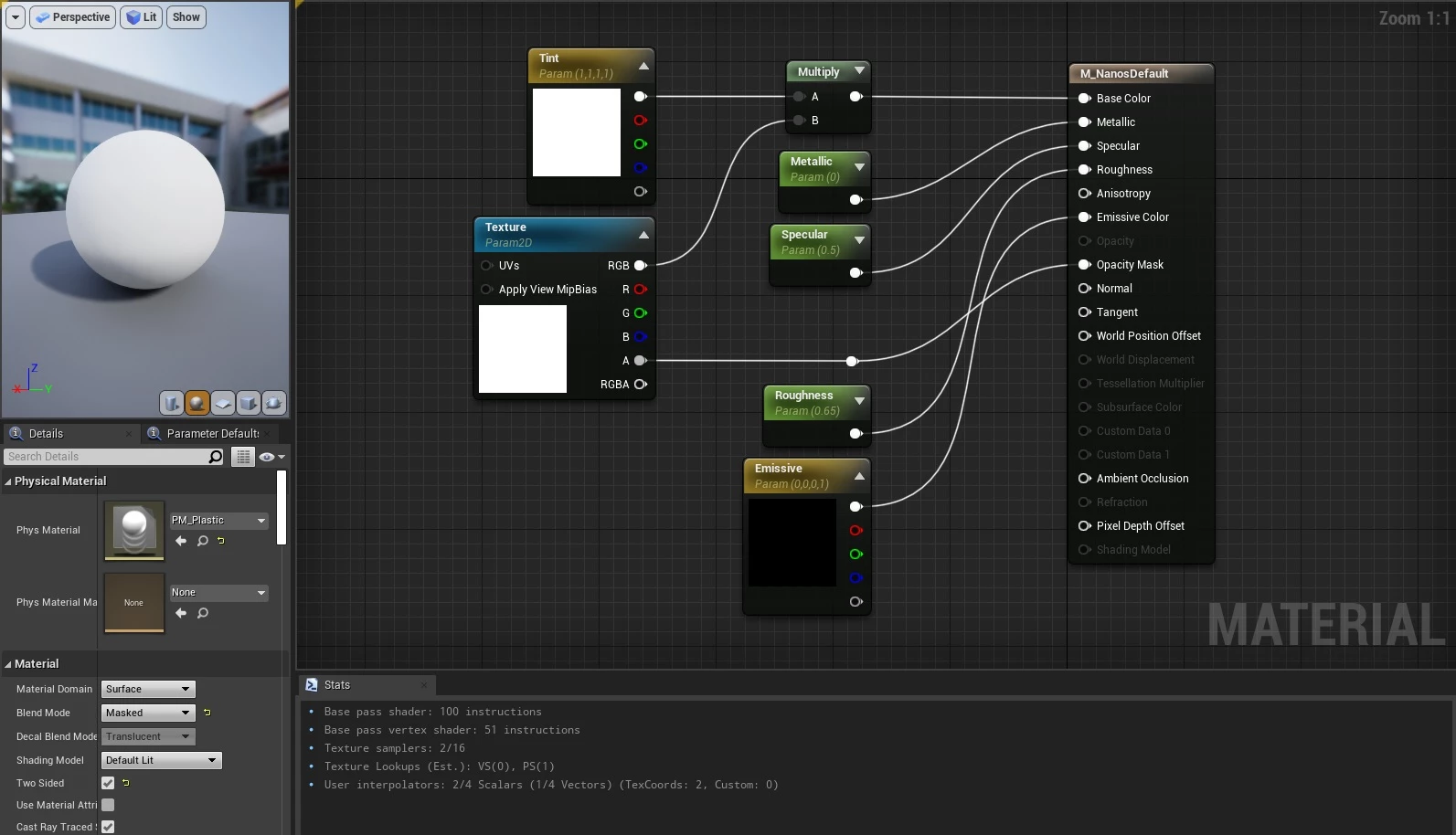

`M_Default_Masked_Lit`

Masked and Lit Material.

`M_Default_Masked_Lit_WorldAligned`

Masked and Lit Material, with WorldAlignedTexture node, scaled with TextureSize scalar parameter.

`M_Default_Masked_Unlit`

Masked and Unlit Material.

`M_Default_Translucent_Lit`

Translucent and Lit Material.

`M_Default_Translucent_Lit_Depth`

Translucent, Lit with Disable Depth Test enabled. Is the same as Translucent but will be always visible in the screen, even behind walls or other objects.

`M_Default_Translucent_Lit_Decal`

Translucent, Lit with Deferred Decal Material Domain, to be used in Decal.

`M_Default_Translucent_Unlit`

Translucent and Unlit Material.

`M_Default_Translucent_Unlit_Depth`

Translucent, Unlit with Disable Depth Test enabled. Is the same as Translucent but will be always visible in the screen, even behind walls or other objects.

Special Utils Materials

`M_Noise`

Opaque, Lit with a Noise node to produce a noise effect. Also provides Speed (Vector) and Scale (Scalar) parameters.

`M_Wireframe`

Translucent, Lit with Wireframe enabled, meaning it renders objects as Wireframe.

tip

Note: All those Materials in this page are already included in the base game in the Default nanos world Asset Pack, you can reference them like that: nanos-world::M_Default_Masked_Lit.

Materials Summary

	Domain	Blend Mode	Shading Model
M_Default_Masked_Lit	Surface	Masked	Default Lit
M_Default_Masked_Lit_WorldAligned	Surface	Masked	Default Lit
M_Default_Masked_Unlit	Surface	Masked	Unlit
M_Default_Translucent_Lit	Surface	Translucent	Default Lit
M_Default_Translucent_Lit_Depth	Surface	Translucent	Default Lit
M_Default_Translucent_Lit_Decal	Deferred Decal	Translucent	Default Lit
M_Default_Translucent_Unlit	Surface	Translucent	Unlit
M_Default_Translucent_Unlit_Depth	Surface	Translucent	Unlit
M_Noise	Surface	Opaque	Default Lit
M_Wireframe	Surface	Translucent	Default Lit

tip

Opaque are the most efficient ones but doesn't support Opacity or Opacity Mask.

Masked are the most common ones and supports Opacity Mask only. It means the Opacity parameter accepts only 0 or 1.

Translucent are the heavier ones to render, and cause a lot of overdraw (and performance issues) if used incorrectly. It supports Opacity but does not support Normal, Metallic, Specular and Roughness inputs by default for optimization reasons.

Supported Common Parameters in each Material

Material Name	Tint	Texture	Normal	Emissive	Metallic	Specular	Roughness	Opacity	VTiling	UTiling	TextureSize
M_Default_Masked_Lit	`true`	`true`	`true`	`true`	`true`	`true`	`true`	`true*`	`true`	`true`	`false`
M_Default_Masked_Lit_WorldAligned	`true`	`true`	`true`	`true`	`true`	`true`	`true`	`true*`	`true`	`true`	`true`
M_Default_Masked_Unlit	`false`	`true`	`false`	`true`	`false`	`false`	`false`	`true*`	`true`	`true`	`false`
M_Default_Translucent_Lit	`true`	`true`	`false`	`true`	`false`	`false`	`false`	`true`	`false`	`false`	`false`
M_Default_Translucent_Lit_Depth	`true`	`true`	`false`	`true`	`false`	`false`	`false`	`true`	`false`	`false`	`false`
M_Default_Translucent_Lit_Decal	`true`	`true`	`true`	`true`	`true`	`true`	`true`	`true`	`false`	`false`	`false`
M_Default_Translucent_Unlit	`false`	`true`	`false`	`false`	`false`	`false`	`false`	`true`	`false`	`false`	`false`
M_Default_Translucent_Unlit_Depth	`false`	`true`	`false`	`false`	`false`	`false`	`false`	`true`	`false`	`false`	`false`
M_Noise	`false`	`false`	`false`	`true`	`true`	`true`	`true`	`false`	`false`	`false`	`false`
M_Wireframe	`true`	`false`	`false`	`true`	`false`	`false`	`false`	`false`	`false`	`false`	`false`

*Masked Material's Opacity supports only Opacity Mask: 0 or 1

Physical Materials

Physical Materials are materials which define Physical properties of an object. With Paintable.SetPhysicalMaterial() you can change the default physical material of an Entity.

Besides the Physical Properties of an object (friction, restitution, density, etc), Physical Materials are used in nanos world for applying special effects and sounds when events happen. For example on Footsteps Effects, Bullets Impacts or Objects Hits.

nanos world provides a list of the built-in Physical Materials which you can use to override in-game the Physical properties of an Entity.

tip

You also can create your own Physical Materials and use them in-game! Just remember to configure in them the proper SurfaceType for a better integration!

	Friction	Restitution	Density	Surface Type
PM_Concrete	`0.9`	`0.3`	`2.0`	`SurfaceType.Concrete`
PM_Flesh	`0.7`	`0.3`	`1.0`	`SurfaceType.Flesh`
PM_Glass	`0.2`	`0.2`	`2.0`	`SurfaceType.Glass`
PM_Grass	`0.7`	`0.3`	`1.0`	`SurfaceType.Grass`
PM_Gravel	`0.7`	`0.3`	`1.0`	`SurfaceType.Gravel`
PM_Ground	`0.7`	`0.3`	`1.0`	`SurfaceType.Ground`
PM_Metal	`0.6`	`0.1`	`1.0`	`SurfaceType.MetalHeavy`
PM_MetalLight	`0.6`	`0.2`	`1.0`	`SurfaceType.MetalLight`
PM_Mud	`0.7`	`0.3`	`1.0`	`SurfaceType.Mud`
PM_Plastic	`0.7`	`0.7`	`1.0`	`SurfaceType.Plastic`
PM_Rock	`0.9`	`0.3`	`1.0`	`SurfaceType.Rock`
PM_Rubber	`0.7`	`1.0`	`1.0`	`SurfaceType.Rubber`
PM_RubberBouncy	`0.05`	`0.9`	`1.0`	`SurfaceType.Rubber`
PM_Sand	`0.6`	`0.3`	`1.0`	`SurfaceType.Sand`
PM_Water	`0.7`	`0.3`	`1.0`	`SurfaceType.Water`
PM_Wood	`0.7`	`0.3`	`0.5`	`SurfaceType.WoodLight`
PM_WoodHeavy	`0.7`	`0.3`	`0.5`	`SurfaceType.WoodHeavy`
