💡 Light

Une Light représente une source de lumière.

Client & Server🔁Not Distributable🧑‍💻API Source

👪Inheritance

This class shares methods and events from Base Entity, Base Actor.

---

🎒 Exemples

Server/Index.lua

local my_light = Light(
    Vector(-152, 245, 115),
    Rotator(0, 90, 90), -- Relevant only for Rect and Spot light types
    Color(1, 0, 0), -- Red Tint
    LightType.Point, -- Point Light type
    100, -- Intensity
    250, -- Attenuation Radius
    44, -- Cone Angle (Relevant only for Spot light type)
    0, -- Inner Cone Angle Percent (Relevant only for Spot light type)
    5000, -- Max Draw Distance (Good for performance - 0 for infinite)
    true, -- Whether to use physically based inverse squared distance falloff, where Attenuation Radius is only clamping the light's contribution. (Spot and Point types only)
    true, -- Cast Shadows?
    true -- Enabled?
)

🛠 Constructors

Default Constructor

No description provided

local my_light = Light(location, rotation?, color?, light_type?, intensity?, attenuation_radius?, cone_angle?, inner_cone_angle_percent?, max_draw_distance?, use_inverse_squared_falloff?, cast_shadows?, visible?, source_radius?, spawn_mode?)

Parameters

Type	Name	Default	Description
Vector	location	Required parameter	World location to spawn at
Rotator	rotation	Rotator(0, 0, 0)	Pertinent uniquement pour les LightType Rect et Spot
Color	color	Color(1, 1, 1)	Color of the light
LightType	light_type	LightType.Point	Point, Spot or Rect
float	intensity	30	Brightness of the light
float	attenuation_radius	250	Distance the light reaches
float	cone_angle	44	Pertinent uniquement pour le LightType Spot
float	inner_cone_angle_percent	0	Pourcentage de l'angle du cône interne (pertinent uniquement pour le LightType Spot) (0-1)
float	max_draw_distance	10000	Distance d'affichage maximale (bon pour les performances) — 0 pour infini
boolean	use_inverse_squared_falloff	true	Whether to use physically based inverse squared distance falloff, where Attenuation Radius is only clamping the light's contribution. (Spot and Point types only)
boolean	cast_shadows	true	Whether the light casts shadows
boolean	visible	true	Whether the light starts visible
float	source_radius	2	Radius of light source shape. (Spot and Point types only)
SpawnMode	spawn_mode	SpawnMode.Immediate	Pass SpawnMode.AfterConstructor or SpawnMode.Manual to avoid immediately sending the entity to clients and improve performance when you want to configure it by setting several configs. Must call FinishSpawn() after all

tip

nanos world provides 3 types of lights: Spot, Point and Rect. Toutes les entités Light sont dynamiques, et donc très coûteuses! Gardez cela à l'esprit avant de faire apparaître 1000 lumières 😉.

🗿 Fonctions statiques

Inherited Entity Static Functions

Light inherits from Base Entity Class, sharing it's methods and functions:
Base Entityscripting-reference/classes/base-classes/entity

	Returns	Name	Description
	table of Base Entity	GetAll	Returns a table containing all Entities of the class this is called on
	Base Entity	GetByIndex	Returns a specific Entity of this class at an index
	integer	GetCount	Returns how many Entities of this class exist
	table of table	GetInheritedClasses	Gets a list of all directly inherited classes from this Class created with the Inheriting System
	iterator	GetPairs	Returns an iterator with all Entities of this class to be used with pairs()
	table or nil	GetParentClass	Gets the parent class if this Class was created with the Inheriting System
	table	Inherit	Inherits this class with the Inheriting System
	boolean	IsChildOf	Gets if this Class is child of another class if this Class was created with the Inheriting System
	function	Subscribe	Subscribes to an Event for all entities of this Class
	function	SubscribeRemote	Subscribes to a custom event called from server
		Unsubscribe	Unsubscribes all callbacks from this Event in this Class within this Package, or only the callback passed

This class doesn't have own static functions.

🦠 Fonctions

Inherited Entity Functions

Light inherits from Base Entity Class, sharing it's methods and functions:
Base Entityscripting-reference/classes/base-classes/entity

	Returns	Name	Description
		BroadcastRemoteEvent	Calls a custom remote event directly on this entity to all Players
		BroadcastRemoteInRadiusEvent	Appelle un événement distant personnalisé directement sur cette entité pour tous les Joueurs dans un rayon donné
		CallRemoteEvent	Calls a custom remote event directly on this entity to a specific Player
		CallRemoteEvent	Calls a custom remote event directly on this entity
		CallRemotePlayersEvent	Appelle un événement distant personnalisé directement sur cette entité pour une liste de Joueurs
		Destroy	Destroys this Entity
		FinishSpawn	Finish the spawning process and send the entity to clients if it was spawned with a deferred spawn_mode
	table of string	GetAllValuesKeys	Gets a list of all values keys
	table	GetClass	Gets the class of this entity
	integer	GetID	Gets the universal network ID of this Entity (same on both client and server)
	any	GetValue	Gets a Value stored on this Entity at the given key
	boolean	HasAuthority	Gets if the local context has authority over this Entity (true if spawned by the client, false if spawned by the server)
	boolean	IsA	Recursively checks if this entity is inherited from a Class
	boolean	IsBeingDestroyed	Returns true if this Entity is being destroyed
	boolean	IsSpawned	Gets if this Entity finished spawning
	boolean	IsValid	Returns true if this Entity is valid (i.e. wasn't destroyed and points to a valid Entity)
		SetSpawnMode	Overrides when this Entity finishes spawning, from the Constructor of an Inherited Class
		SetValue	Sets a Value in this Entity
	function	Subscribe	Subscribes to an Event on this specific entity
	function	SubscribeRemote	Subscribes to a custom event called from server on this specific entity
		Unsubscribe	Unsubscribes all callbacks from this Event in this Entity within this Package, or only the callback passed

Inherited Actor Functions

Light inherits from Base Actor Class, sharing it's methods and functions:
Base Actorscripting-reference/classes/base-classes/actor

	Returns	Name	Description
		AddActorTag	Adds an Unreal Actor Tag to this Actor
		AddAngularImpulse	Add an angular impulse to this Actor. Good for one time instant burst
		AddImpulse	Add an impulse to this Actor. Good for one time instant burst
	boolean	AttachTo	Attache cet acteur à tout autre acteur, éventuellement à un os spécifique
		Detach	Détache cet Acteur à partir de AttachedTo Actor
	table of string	GetActorTags	Gets all Unreal Actor Tags on this Actor
	Vector	GetAngularForce	Gets this Actor's angular force (set by SetAngularForce())
	float	GetAngularVelocity	Renvoie la vitesse angulaire de cet Acteur
	table of Base Actor	GetAttachedEntities	Gets all Actors attached to this Actor
	Base Actor or nil	GetAttachedTo	Gets the Actor this Actor is attached to
	string	GetAttachedToSocket	Gets the bone or socket name this Actor is attached to
	table	GetBounds	Gets this Actor's bounds, useful to know its size in the world
	CollisionType	GetCollision	Gets this Actor's collision type
	integer	GetDimension	Gets this Actor's dimension
	float	GetDistanceFromCamera	Gets the distance of this Actor from the Camera
	Vector	GetForce	Gets this Actor's force (set by SetForce())
	float	GetLifeSpan	Gets the time (in seconds) left before this Actor is destroyed
	Vector	GetLocation	Gets this Actor's location in the game world
	float	GetMass	Renvoie la masse de cet Acteur
	Player or nil	GetNetworkAuthority	Gets this Actor's Network Authority Player
	Vector	GetRelativeLocation	Gets this Actor's Relative Location if it's attached
	Rotator	GetRelativeRotation	Gets this Actor's Relative Rotation if it's attached
	Rotator	GetRotation	Gets this Actor's angle in the game world
	Vector	GetScale	Gets this Actor's scale
	float	GetScreenPercentage	Gets the percentage of this Actor size in the screen
	table	GetSocketTransform	Gets a Socket Transform in world space given a bone or socket name
	Vector	GetVelocity	Gets this Actor's current velocity
	boolean	HasNetworkAuthority	Returns true if the local Player is currently the Network Authority of this Actor
	boolean	IsGravityEnabled	Returns true if gravity is enabled on this Actor
	boolean	IsImpulseOnDamage	Returns true if taking damage pushes this Actor's physics body
	boolean	IsInWater	Returns true if this Actor is in water
	boolean	IsNetworkDistributed	Returns true if this Actor is currently network distributed
	boolean	IsVisible	Returns true if this Actor is visible
		RemoveActorTag	Removes an Unreal Actor Tag from this Actor
		RotateRelativeTo	Smoothly rotates this attached actor to an angle relative to its parent over a certain time
		RotateTo	Smoothly rotates this actor to an angle over a certain time
		SetAngularForce	Adds a permanent angular force to this Actor, set to Vector(0, 0, 0) to cancel
		SetCastShadow	Sets this Actor's to cast shadows or not
		SetCollision	Sets this Actor's collision type
		SetDimension	Sets this Actor's Dimension. Actors only see and interact with entities in the same Dimension
		SetDistanceOptimizationMultiplier	Définit le multiplicateur d'optimisation de distance de cet Acteur
		SetForce	Adds a permanent force to this Actor, set to Vector(0, 0, 0) to cancel
		SetGravityEnabled	Sets whether gravity is enabled on this Actor
		SetHighlightEnabled	Sets whether the highlight is enabled on this Actor, and which highlight index to use
		SetImpulseOnDamage	Sets whether taking damage (shots, melee, explosions) pushes this Actor's physics body
		SetLifeSpan	Sets the time (in seconds) before this Actor is destroyed. After this time has passed, the actor will be automatically destroyed.
		SetLocation	Sets this Actor's location in the game world
		SetNetworkAuthority	Sets the Player to have network authority over this Actor
		SetNetworkAuthorityAutoDistributed	Sets if this Actor will auto distribute the network authority between players
		SetOutlineEnabled	Définit si le contour est activé sur cet acteur et quel index de contour utiliser
		SetRelativeLocation	Sets this Actor's relative location in local space (only if this actor is attached)
		SetRelativeRotation	Sets this Actor's relative rotation in local space (only if this actor is attached)
		SetRenderCullDistance	Sets this Actor's render cull distance
		SetRotation	Sets this Actor's rotation in the game world
		SetScale	Sets this Actor's scale
		SetVisibility	Sets whether the actor is visible or not
		TranslateRelativeTo	Smoothly moves this attached actor to a location relative to its parent over a certain time
		TranslateTo	Smoothly moves this actor to a location over a certain time
	boolean	WasRecentlyRendered	Gets if this Actor was recently rendered on screen

	Returns	Name	Description
	float	GetAttenuationRadius	Gets the distance this Light reaches
	boolean	GetCastShadows	Gets if this Light casts shadows
	Color	GetColor	Gets the color of this Light
	float	GetIntensity	Gets the brightness of this Light
		SetAttenuationRadius	Sets the distance this Light reaches
		SetCastShadows	Sets if this Light casts shadows
		SetColor	Définir la couleur de la lumière
		SetIntensity	Sets the brightness of this Light
		SetTextureLightProfile	Définit le profil de texture de la lumière

---

Optimal

GetAttenuationRadius

Gets the distance this Light reaches

local attenuation_radius = my_light:GetAttenuationRadius()

Returns

Type	Description
float	The attenuation radius

See also SetAttenuationRadius.

---

Optimal

GetCastShadows

Gets if this Light casts shadows

local is_shadows_enabled = my_light:GetCastShadows()

Returns

Type	Description
boolean	Whether it casts shadows

See also SetCastShadows.

---

Optimal

GetColor

Gets the color of this Light

local color = my_light:GetColor()

Returns

Type	Description
Color	La couleur de la lumière

See also SetColor.

---

Optimal

GetIntensity

Gets the brightness of this Light

local intensity = my_light:GetIntensity()

Returns

Type	Description
float	The brightness

See also SetIntensity.

---

Optimal

SetAttenuationRadius

Sets the distance this Light reaches

my_light:SetAttenuationRadius(attenuation_radius)

Parameters

Type	Parameter	Default	Description
float	attenuation_radius	Required parameter	The new attenuation radius

See also GetAttenuationRadius.

---

Optimal

SetCastShadows

Sets if this Light casts shadows

my_light:SetCastShadows(is_shadows_enabled)

Parameters

Type	Parameter	Default	Description
boolean	is_shadows_enabled	Required parameter	Whether it casts shadows

See also GetCastShadows.

---

Optimal

SetColor

Définir la couleur de la lumière

my_light:SetColor(color)

Parameters

Type	Parameter	Default	Description
Color	color	Required parameter	La couleur de la lumière

See also GetColor.

---

Optimal

SetIntensity

Sets the brightness of this Light

my_light:SetIntensity(intensity)

Parameters

Type	Parameter	Default	Description
float	intensity	Required parameter	The new brightness

See also GetIntensity.

---

Optimal

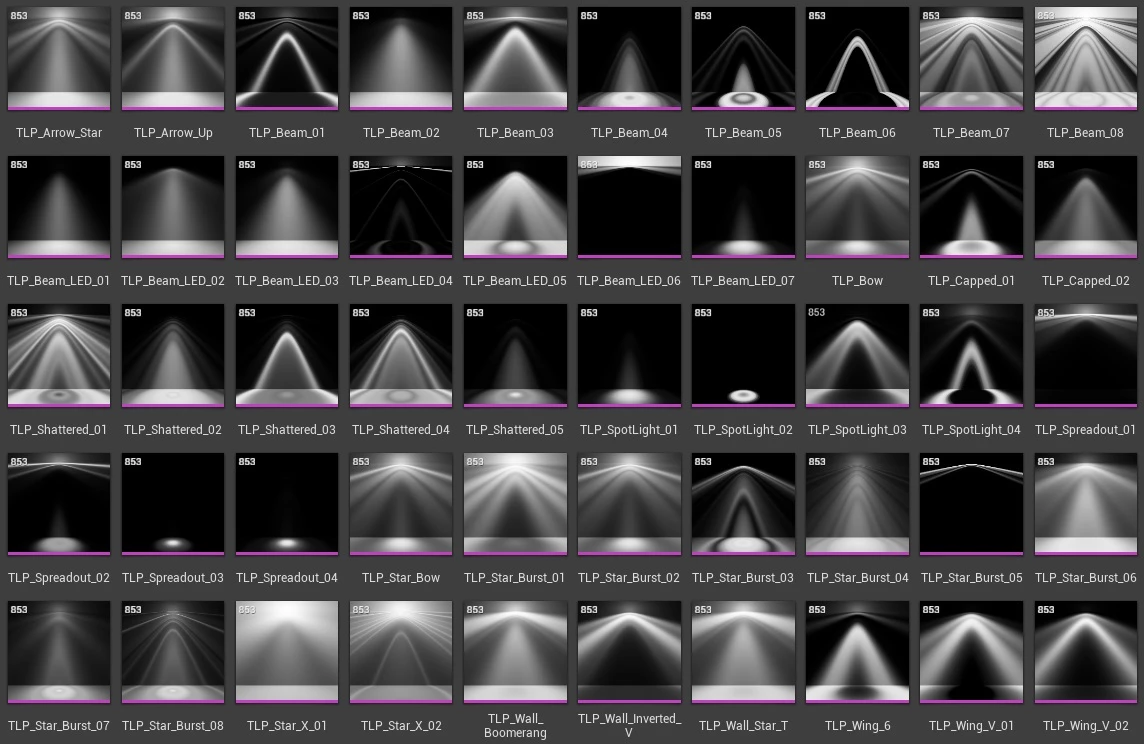

SetTextureLightProfile

Définit le profil de texture de la lumière

my_light:SetTextureLightProfile(light_profile)

Parameters

Type	Parameter	Default	Description
LightProfile	light_profile	Required parameter	Le profil de lumière à utiliser

See also 💡 Light Profiles.

🚀 Événements

Inherited Entity Events

Light inherits from Base Entity Class, sharing it's events:
Base Entityscripting-reference/classes/base-classes/entity

	Name	Description
	ClassRegister	Triggered when a new Class is registered with the Inheriting System
	Destroy	Triggered when an Entity is destroyed
	Spawn	Triggered when an Entity is spawned/created
	ValueChange	Triggered when an Entity has a value changed with :SetValue()

Inherited Actor Events

Light inherits from Base Actor Class, sharing it's events:
Base Actorscripting-reference/classes/base-classes/actor

	Name	Description
	DimensionChange	Déclenché lorsqu'un Actor change de dimension
	EnterWater	Triggered when an Actor enters a water body
	LeaveWater	Triggered when an Actor leaves a water body
	NetworkAuthorityChange	Déclenché lorsqu'un Acteur modifie son autorité sur le réseau
	NetworkAuthorityChange	Déclenché lorsque le joueur local gagne/perd l'autorité du réseau sur cet Acteur

This class doesn't have own events.

💡 Profils de Lumière

Les profils lumineux sont des fichiers de textures qui décrivent la distribution d'une lumière à partir d'une source lumineuse en utilisant des données mesurées dans le monde réel.

tip

Please check Unreal Engine Light Profile documentation for more information about Light Profiles!

nanos world provides 50 Light Profiles included in the base game which you can use to enhance your Lights. You can set them using :SetTextureLightProfile() with the enum LightProfile.
